General Electric LR65 High Amp Kit
A precision replacement kit for General Electric LR65 load tap changers (LTCs), machined to OEM dimensional specifications.
- OEMGeneral Electric
- Model / SeriesLR65
- Part typeKit
- EquipmentLoad tap changers (LTCs)
- AvailabilityBuilt to order / lead time confirmed at quote
- Internal ref.LTC-GE-LR65HA-KIT
Overview
high-amperage contact kit for the General Electric LR65 LTC, reversing, selector, transfer, and arcing contacts.
About the GE LR65 Load Tap Changer
The General Electric LR65 is a load tap changer used in GE distribution and power transformers for on-load voltage regulation. It uses a selector switch and reversing switch arrangement with an arcing contact to switch between tap positions under load. The high-amp kit configuration covers transformers with elevated load current requirements. Southern Switch machines LR65 selector switch stationary contacts, reversing switch moving contacts, and arcing blocks to OEM dimensional specifications.
Why replace worn LTC contacts
Worn or burned tap-changer contacts raise resistance, run hot, and can lead to tap-changer failure. Precision replacements restore reliable switching and extend the service life of the LTC.
Stock, lead time & reverse engineering
Lead time is confirmed at quote; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.

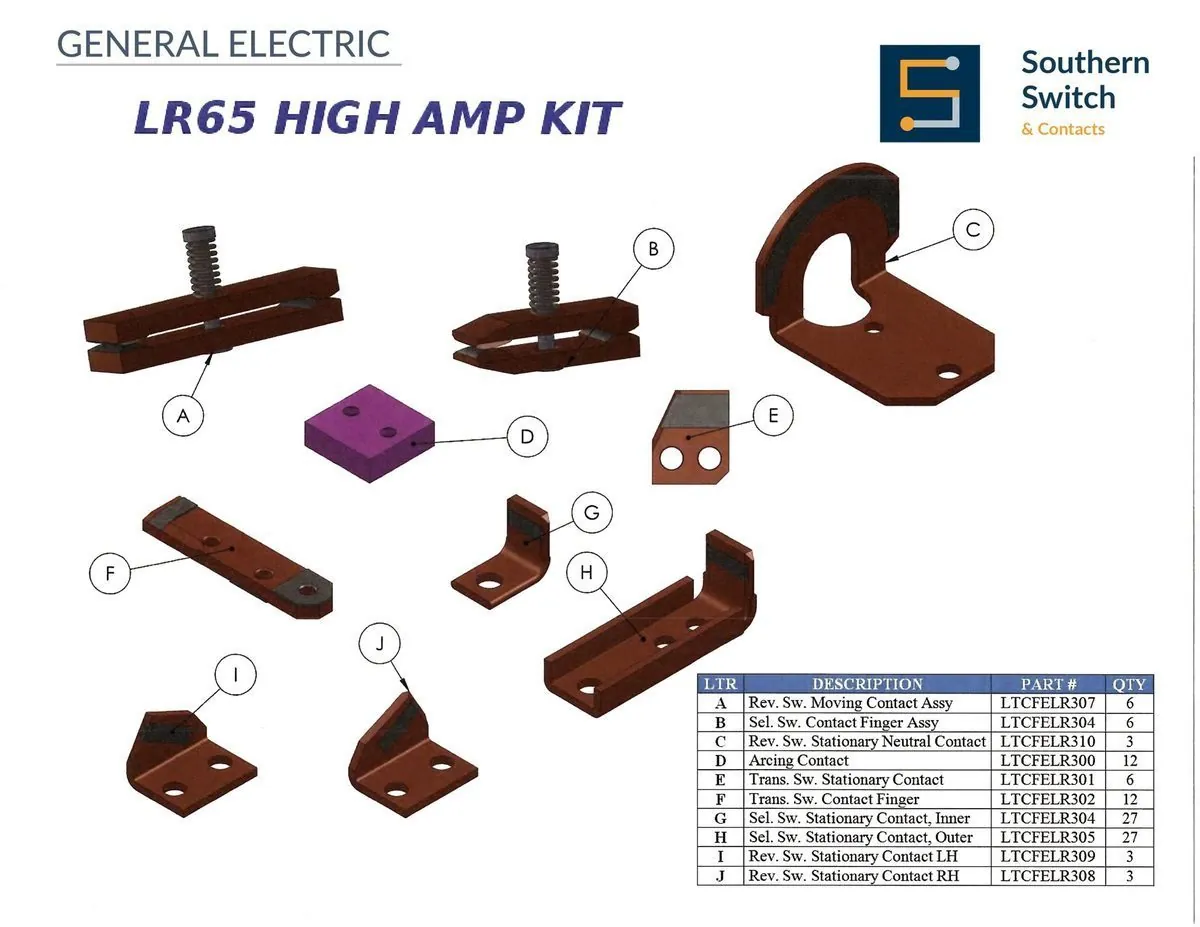

Each part below corresponds to a labeled component on the kit drawing. Click View to open the part’s standalone page, or + Quote to add it to your quote without leaving this page.
What’s in the kit
Every part below ships in the kit, listed with its OEM number and the quantity per kit. Need only certain parts or quantities? Tell us and we will tailor the quote.
| Ref | Part | Qty | Action |
|---|---|---|---|
| A | Reversing Switch Moving Contact Assembly (OEM 486B181 G1) LTCFELR307 | 6 | |
| B | Selector Switch Contact Finger Assembly (OEM 359A139 G1) LTCFELR304 | 6 | |
| C | Reversing Switch Stationary Neutral Contact LTCFELR310 | 3 | |
| D | Arcing Contact (OEM 8380576 P21) LTCFELR300 | 12 | |
| E | Transfer Switch Stationary Contact (OEM 358A886 P21) LTCFELR301 | 6 | |
| F | Transfer Switch Contact Finger (OEM 489B880) LTCFELR302 | 12 | |
| G | Selector Switch Stationary Contact (Inner) (OEM 359A139 G1) LTCFELR304 | 27 | |
| H | Selector Switch Stationary Contact (Outer, Large) (OEM 488B756 P23) LTCFELR305 | 27 | |
| I | Reversing Switch Stationary Contact LH LTCFELR309 | 3 | |
| J | Reversing Switch Stationary Contact RH LTCFELR308 | 3 |
Worn but not scrap? Send us your used contacts. We recondition them to OEM dimension, or machine a new set from your sample, and return them tested and documented. Often cheaper and faster than buying new.
Send the model number, asset tag, or just a description, we’ll reply with pricing and lead time within one business day.
Net 30 with an accepted PO, no credit application required. How we do business →
