Shop stock & custom
components.
Replacement components for common utility switch and transformer equipment, plus custom parts built to your drawings or samples, material certification available on request. Browse our lines below, organized by category.
Build a quote in seconds. Browse the lines below and tap + Add to quote on anything you need, then send us the list and we'll reply with pricing and lead time, usually within one business day. Prefer to talk? Contact us directly.
Utility Replacement Parts Catalog
Main moving contact for McGraw-Edison 550B series. Precision-machined to OEM dimensions; material certification available on request.
Stationary contact for McGraw-Edison 550C series. Precision-machined contact surface, correct alloy composition; material certification on request.
Matched contact sets for other McGraw-Edison switch models. Contact us with your model number, we likely have it in stock or can produce it quickly.
A patented design that replaces any traditional gear operator with no modification to the existing mounting structure. With our universal mounting backplate, any worn or seized operator can be replaced in an hour or less.
- Maintenance-free slew drive eliminates back drive
- Machined aluminum downpipe adaptor, 4 piercing bolts
- Standard 2″, customizable up to 3″
- Anodized stops adjustable in 4° increments
- Four-position lock
- Reversible open-plate indicator
- Standard 36:1 gear reduction
- Optional 62:1 gear reduction
Gaskets, fittings, bushings, and structural hardware for power and distribution transformers. Regasketing kits for common models available.
Send drawings, a sample part, or a model number, we'll produce it with full documentation. No minimums. Urgent orders welcome.
Individual parts and full kits, we reverse-engineer and manufacture discontinued components, and design & build virtually any component inside the substation fence.
Recloser contacts, gaskets, and internal components; regulator contacts, gaskets, and control board refurbishment.
Qualitrol gauges, replacement fans, pump rebuilds, pump receptacles & stop-leak adaptors, and draw-lead extensions.
Discontinued by the OEM? Send a sample or model number, we reverse-engineer and manufacture the replacement with full documentation.
Design and manufacture of virtually any component inside the substation fence, built to meet or exceed OEM specifications.
Gaskets, hardware, and complete rebuild kits for common models, everything needed to return the asset to service.

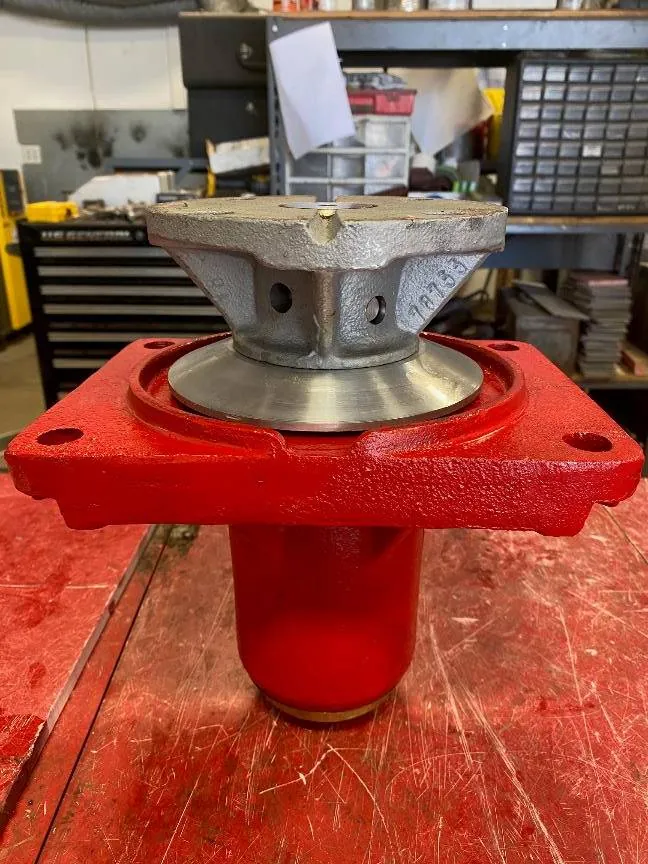

Send us your seized or worn Southern States rotating switch bearings. We rebuild them with stainless-steel shafts and bearings, brass lock nuts, and Viton O-ring seals, with an enhanced option that adds 100% stainless bearings, a machined aluminum rain shield, Mobil XHP222 grease, and a field-serviceable zerk fitting.
CT passthrough blocks mount on the transformer tank wall and carry the current transformer secondary wiring from inside the tank to the external terminal board. OEM blocks are cast phenolic or polyester resin — materials that embrittle with age and crack under the torque of a terminal nut after 40–60 years of service. When one breaks, the transformer comes down and no OEM replacement exists.
SSC machines replacement blocks from G-10 fiberglass laminate — woven glass cloth and epoxy resin — a material that does not embrittle, handles terminal torque without cracking, and is rated for continuous dielectric and thermal duty. A Florida municipal utility called us after cracking their replacement block while tightening terminal connections. We had their custom G-10 blocks machined and shipped in two days. The only delay was sourcing a large-format G-10 sheet we didn't stock. For standard sizes we keep material on hand.
- Material: NEMA G-10 fiberglass — does not embrittle, handles terminal torque, rated for oil and thermal exposure
- Contact pins: machined copper or copper-silver alloy matched to original diameter, thread pitch, and spacing
- No drawing required — send the old block as a sample, we reverse-engineer every dimension
- Any pin count, any layout, any mounting pattern — single-piece or two-piece assemblies
- Emergency turnaround available — transformer-down jobs handled first
