Replace a worn or seized gear operator without rebuilding the mounting structure

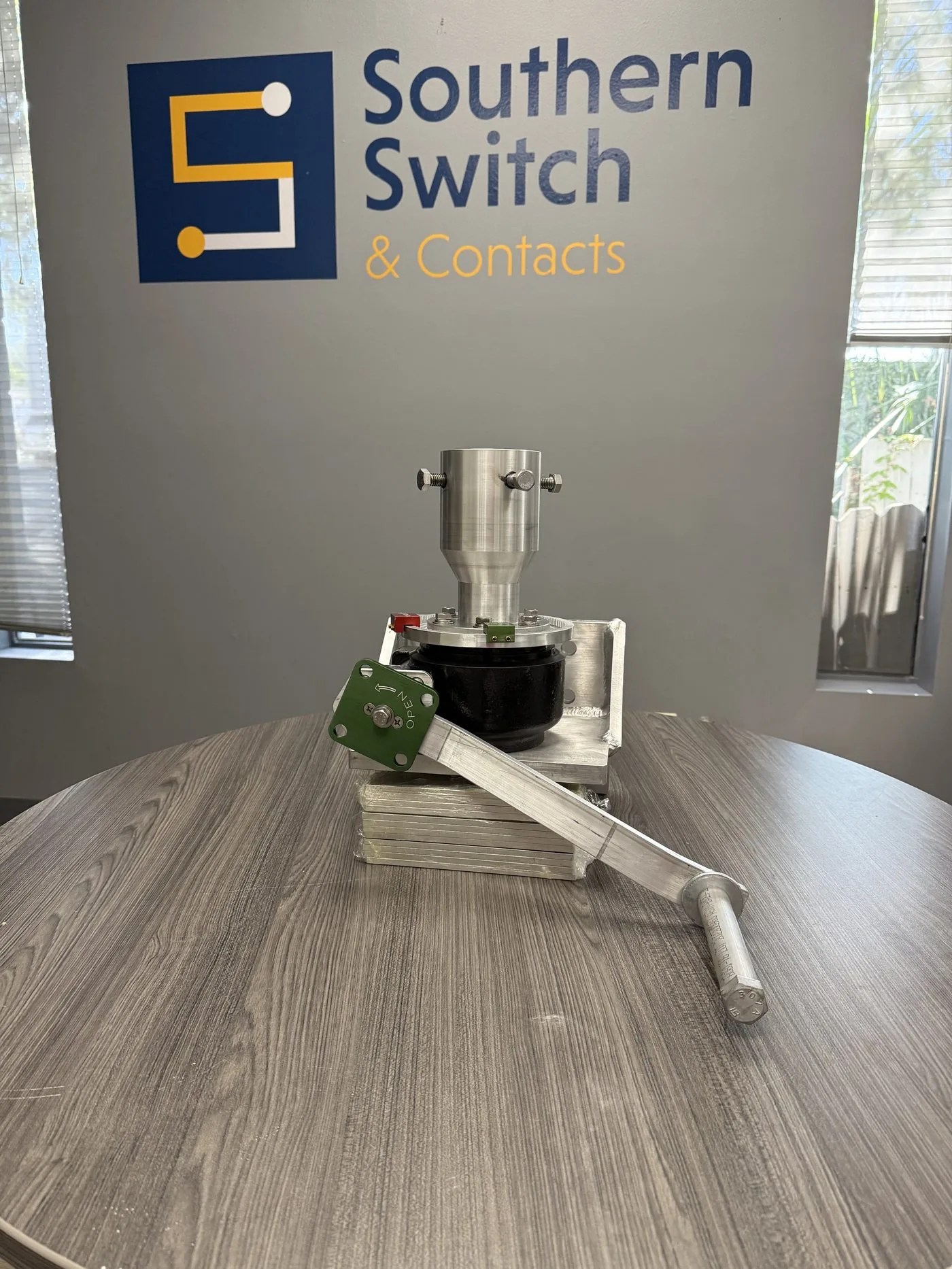

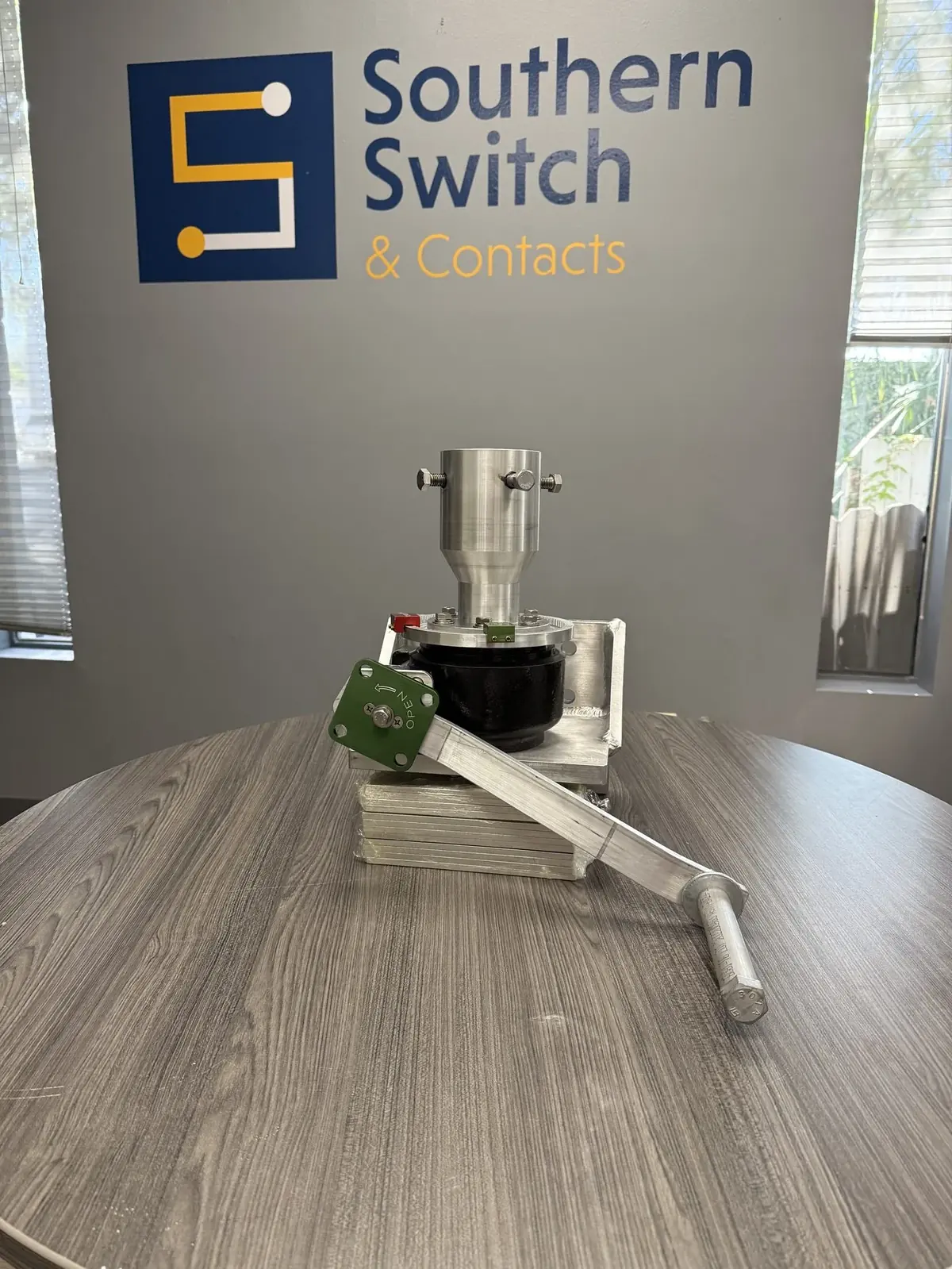

The UGOR is a universal replacement operator. Based on Southern Switch field experience, its universal mounting system fits about 95% of OEM bolt patterns, so it mounts to the existing structure without cutting or welding. We confirm the configuration for your switch, build the unit, and can install it.
- Universal fitFits about 95% of OEM bolt patterns (Southern Switch field experience)
- MountingExisting structure, no structural modification
- Gear reduction36:1 standard · 62:1 optional
- Downpipe adaptor2″ and 2½″ NPS stocked · custom built to order
- Drive3″ slewing drive · 3,000 N·m (2,213 ft·lbf) backwards holding torque
- OriginMachined and assembled in Palm Harbor, FL
Old operators wear, seize, and back-drive
Gear operators on disconnect and air-break switches wear, seize, and back-drive. A worn operator loses positive control of the blades, a seized operator strands the switch in position, and back-drive lets the stored energy in a stiff switch push the operator off its stop. Replacing one the conventional way may mean adapting the new unit to the existing structure with field drilling, cutting, or welding, which adds crew hours and extends the outage. The UGOR removes that step.
Based on Southern Switch field experience, the universal mounting system fits roughly 95% of OEM bolt patterns, so most switches take a UGOR with no structural modification. It bolts to the structure already in place.

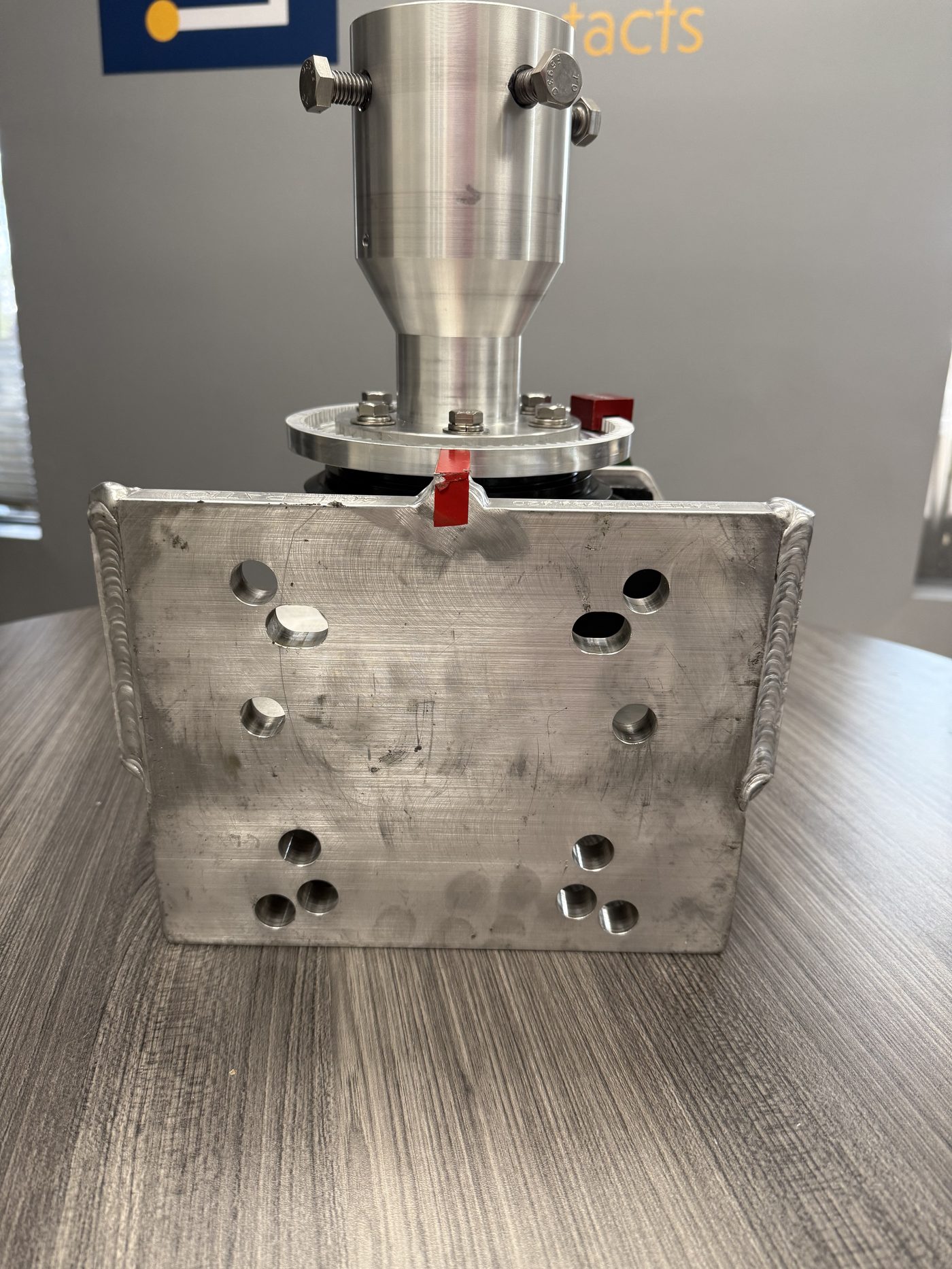

Because the backplate adapts to the existing structure, there is no field fabrication. Less time in the yard, and no rework to a structure that has to carry the switch for decades.

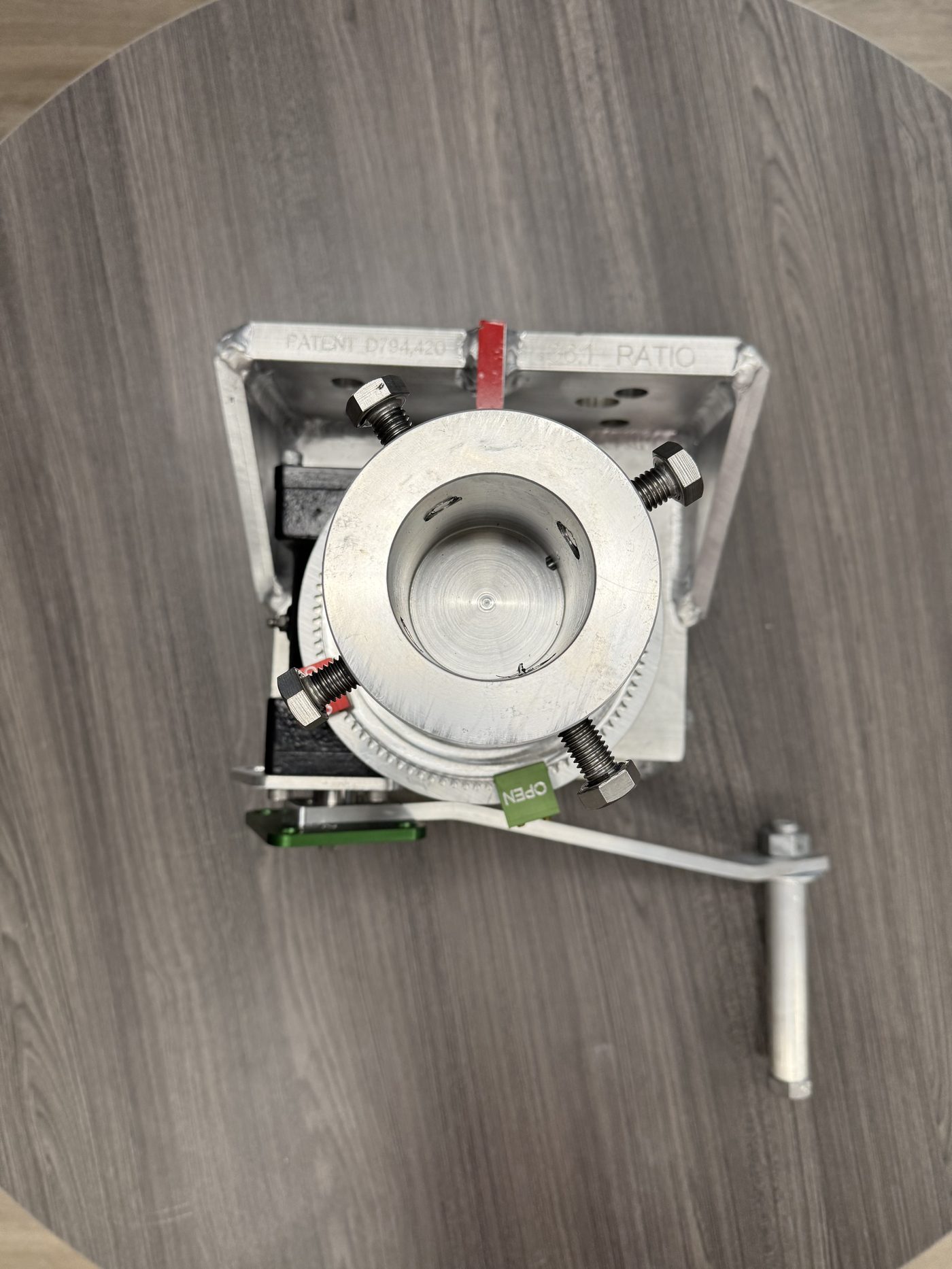

Gear ratio (36:1 or 62:1), downpipe adapter, and backplate are configured for your switch. The 3″ slewing drive is rated for 3,000 N·m (2,213 ft·lbf) of backwards holding torque, with a four-position positive lock and a reversible open-plate indicator.
Southern Switch machines the adapters and backplates, builds the operator in Palm Harbor, and can install it with its own field crews. One company stands behind the part and the work.
| Conventional operator replacement | UGOR | |
|---|---|---|
| Mounting adaptation | May require site-specific mounting adaptation | Universal mounting system; fits about 95% of OEM bolt patterns based on Southern Switch field experience |
| Field fabrication | May require field drilling, cutting, or welding | No cutting or welding; custom backplate machined in-shop when a pattern does not match |
| Configuration | Varies by supplier | Gear ratio, downpipe adapter, and backplate confirmed per switch before order |
| Installation and support | Often split across separate suppliers and installers | Built and installed by Southern Switch |
Will it fit your switch?
The UGOR is a universal replacement operator for hand-operated gang switches across voltage classes. Based on Southern Switch field experience, its universal mounting system fits about 95% of OEM bolt patterns. The fit check below is quality control: it confirms the exact configuration for your switch before the unit is built.
based on Southern Switch field experience
- Switch manufacturer and model
- Existing operator make and model
- Photographs of the operator and mounting structure
- Mounting / bolt pattern (photo or dimensions)
- Downpipe outside diameter and length
- Voltage class
- Continuous current (amp) rating
- Drawings
Send us your switch photos and model information and we confirm the appropriate UGOR configuration: gear ratio, downpipe adapter, and backplate. Custom backplates are rarely required. In Southern Switch's experience, the few custom plates we have made were for unusual steel structures, not incompatible OEM bolt patterns.
The replacement, step by step
The sequence below is what a field replacement looks like. The full procedure, including stop-setting and commissioning, is in the installation instructions.
- Confirm fit: backplate bolt pattern, downpipe adapter size, and gear ratio are confirmed before the switch is touched.
- Remove the worn or seized operator from the existing mounting structure.
- Mount the UGOR to the existing structure with its universal backplate.
- Install the downpipe adapter and set the downpipe, trimming only after alignment is confirmed.
- Set the open and closed stops and the position indicator.
- Cycle the switch and verify open and closed operation.
Specifications and measured performance
| Item | Specification |
|---|---|
| Standard gear reduction | 36:1 |
| Optional gear reduction | 62:1, for unusually heavy or stiff switches |
| Downpipe adaptor, stocked | 2″ and 2½″ NPS |
| Downpipe adaptor, custom | Built to order as needed |
| Drive | 3″ slewing drive |
| Backwards holding torque | 3,000 N·m (2,213 ft·lbf) |
| Position lock | Four-position positive lock |
| Indicator | Reversible open-plate indicator |
| Adaptor construction | Machined aluminum with four piercing bolts |
| Stops | Anodized, adjustable in 4° increments |
| Mounting | Universal mounting system, no structural modification; fits about 95% of OEM bolt patterns (Southern Switch field experience) |
| Warranty | One-year limited warranty |
| Origin | Machined and assembled in Palm Harbor, FL |
At Bob White substation, both operators were measured on the same Southern States EV-2 230 kV, 2,000 A switch, opening from fully closed, using the same calibrated Klau Model OCS-L scale with peak-hold.
Because the comparison uses different gear ratios (UGOR 62:1 vs. HOGO 29:1), the 63% difference reflects both the ratio advantage and the drive characteristics, not ratio alone. This is a single documented comparison on one switch, not a guarantee of 63% on every switch.
The UGOR is in service on investor-owned and municipal utility systems in Florida and the Southeast. The performance figures above come from field measurement, documented with the instrument, the switch, and the method.
Pricing is quoted by configuration: gear ratio, downpipe length, and volume. Net 30 with an accepted purchase order.
We make it, install it, and support it
The UGOR is supplied for the switch-specific configuration confirmed at order. Southern Switch provides installation instructions, and our field crews can perform the installation on-site across Florida and the Southeast.
The UGOR is not a resold catalog part. Southern Switch machines the downpipe adapters and custom backplates in its Palm Harbor shop, assembles the operator in-house, and installs it with its own crews. On the rare switch that needs a non-standard adapter or a custom backplate, that work happens in-house rather than waiting on a vendor. One-year limited warranty, Net 30 with an accepted PO.
What to send for a quote
A UGOR quote is configured to your switch. Send the following and Southern Switch returns pricing with the confirmed gear ratio, downpipe adapter, and backplate, plus lead time.
Common questions
Will the UGOR fit my switch’s bolt pattern?
Based on Southern Switch field experience, the universal mounting system fits about 95% of OEM bolt patterns, so most switches take a UGOR with no structural modification. Custom backplates are rarely required, and the few we have made were for unusual steel structures rather than incompatible OEM bolt patterns. Send your switch details and we confirm the configuration before the unit is built.
What downpipe adapter sizes are stocked, and can you make custom sizes?
Adapters are stocked in 2″ and 2½″ NPS. Custom sizes are machined to order as needed and confirmed at quote.
Which gear ratio should I use?
36:1 is standard and suits the large majority of installations. 62:1 is specified for unusually heavy or stiff switches that need additional mechanical advantage. The ratio for your switch is confirmed at quote.
Does installation require structural modification?
No. The universal mounting system bolts to the existing structure, so there is no cutting, welding, or fabrication.
Can Southern Switch install it?
Yes. Southern Switch field crews install the UGOR on-site across Florida and the Southeast, or you can install it yourself using the documented procedure.
What information do you need for a quote?
Switch manufacturer and model, existing operator, photographs, mounting/bolt pattern, and downpipe outside diameter and length. Voltage class, amp rating, and drawings help if available.
What is the warranty?
A one-year limited warranty applies. Terms are confirmed at quote.
