General Electric LRT65 High Amp Kit
A precision replacement kit for General Electric LRT65 load tap changers (LTCs), machined to OEM dimensional specifications. Material certification available on request.
- OEMGeneral Electric
- Model / SeriesLRT65
- Part typeKit
- EquipmentLoad tap changers (LTCs)
- DocumentationMaterial certification on request
- AvailabilityBuilt to order / short lead times
- Internal ref.LTC-GE-LRT65HA-KIT
Overview
high-amperage contact kit for the General Electric LRT65 LTC, reversing, selector, transfer, and arcing contacts.
About the GE LRT65 Load Tap Changer
The General Electric LRT65 is a load tap changer used in GE distribution transformers for on-load voltage regulation. It is available in standard and high-amp configurations to match the load current rating of the transformer. The LRT65 kit covers all contact components required at the manufacturer's recommended maintenance interval. Southern Switch machines LRT65 contacts and kits to OEM dimensional specifications and stocks both standard and high-amp kit configurations.
Why replace worn LTC contacts
Worn or burned tap-changer contacts raise resistance, run hot, and can lead to tap-changer failure. Precision replacements restore reliable switching and extend the service life of the LTC.
Stock, lead time & reverse engineering
Common items are produced on short lead times; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.

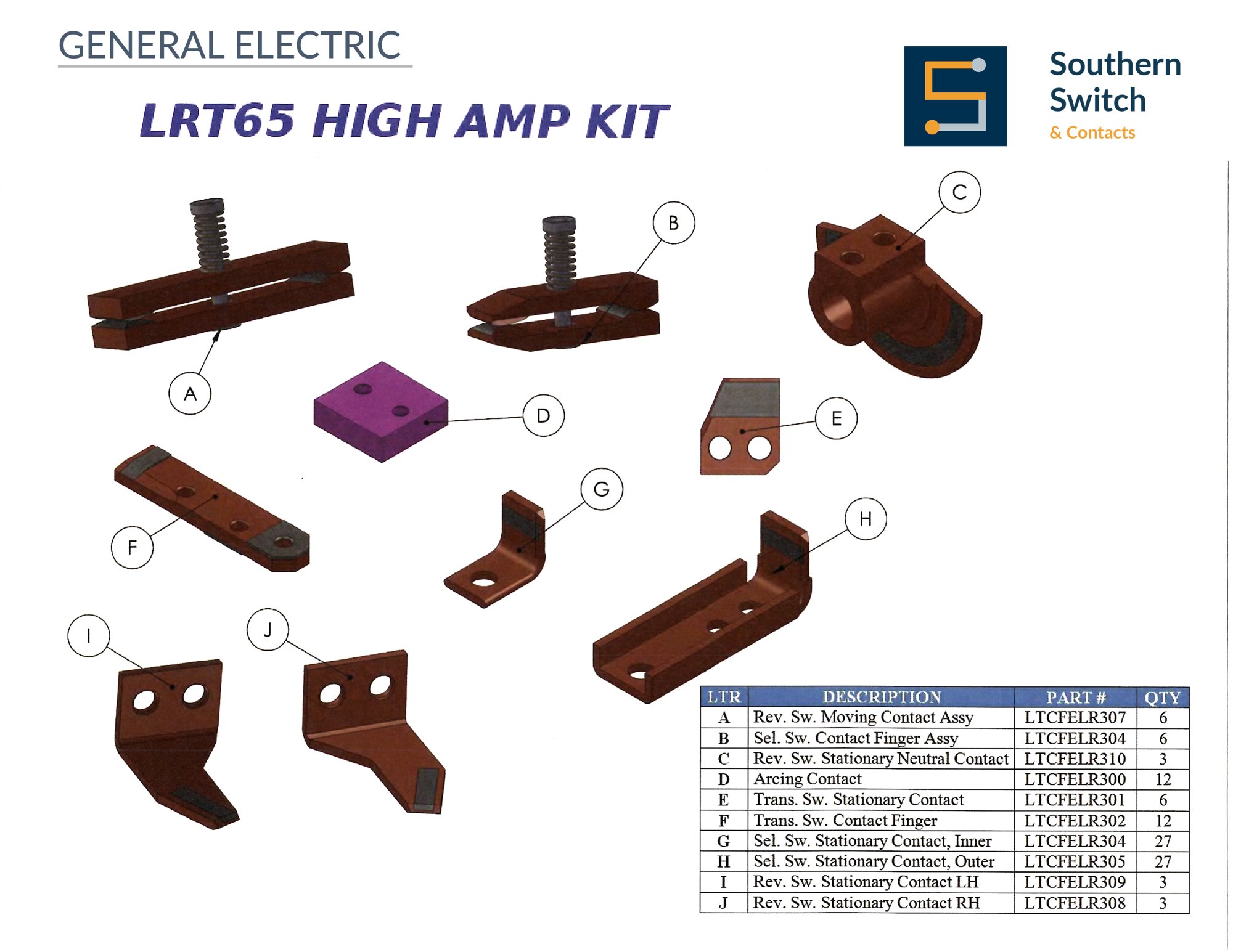

Each part below corresponds to a labeled component on the kit drawing. Click View to open the part’s standalone page, or + Quote to add it to your quote without leaving this page.
| Ref | Part | Qty | Action |
|---|---|---|---|
| A | Reversing Switch Moving Contact Assembly LTCFELR307 | 6 | |
| B | Selector Switch Contact Finger Assembly LTCFELR304 | 6 | |
| C | Reversing Switch Stationary Neutral Contact LTCFELR310 | 3 | |
| D | Arcing Contact LTCFELR300 | 12 | |
| E | Transfer Switch Stationary Contact LTCFELR301 | 6 | |
| F | Transfer Switch Contact Finger LTCFELR302 | 12 | |
| G | Selector Switch Stationary Contact (Inner) LTCFELR304 | 27 | |
| H | Selector Switch Stationary Contact (Outer) LTCFELR305 | 27 | |
| I | Reversing Switch Stationary Contact LH LTCFELR309 | 3 | |
| J | Reversing Switch Stationary Contact RH LTCFELR308 | 3 |
Send the model number, asset tag, or just a description, we’ll reply with pricing and lead time within one business day.
Net 30 with an accepted PO, no credit application required. How we do business →
