Federal-Pacific TC-546 Kit
A precision replacement kit for Federal-Pacific TC-546 load tap changers (LTCs), machined to OEM dimensional specifications. Material certification available on request.
- OEMFederal-Pacific
- Model / SeriesTC-546
- Part typeKit
- EquipmentLoad tap changers (LTCs)
- DocumentationMaterial certification on request
- AvailabilityBuilt to order / short lead times
- Internal ref.LTC-FP-TC546-KIT
Overview
contact kit for the Federal-Pacific TC-546 LTC, reversing switch, main, diverter switch, arcing, wedge, and collector ring contacts.
About the Federal Pacific TC 546 Load Tap Changer
The Federal Pacific TC 546 is a load tap changer with a diverter switch roller contact assembly, inner collector ring, wedge contacts, and reversing switch contacts. The diverter switch roller contact assembly is the primary wear component, with the wedge contact and collector ring also requiring attention at maintenance intervals. Southern Switch machines TC 546 replacement contacts to OEM dimensional specifications.
Why replace worn LTC contacts
Worn or burned tap-changer contacts raise resistance, run hot, and can lead to tap-changer failure. Precision replacements restore reliable switching and extend the service life of the LTC.
Stock, lead time & reverse engineering
Common items are produced on short lead times; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.

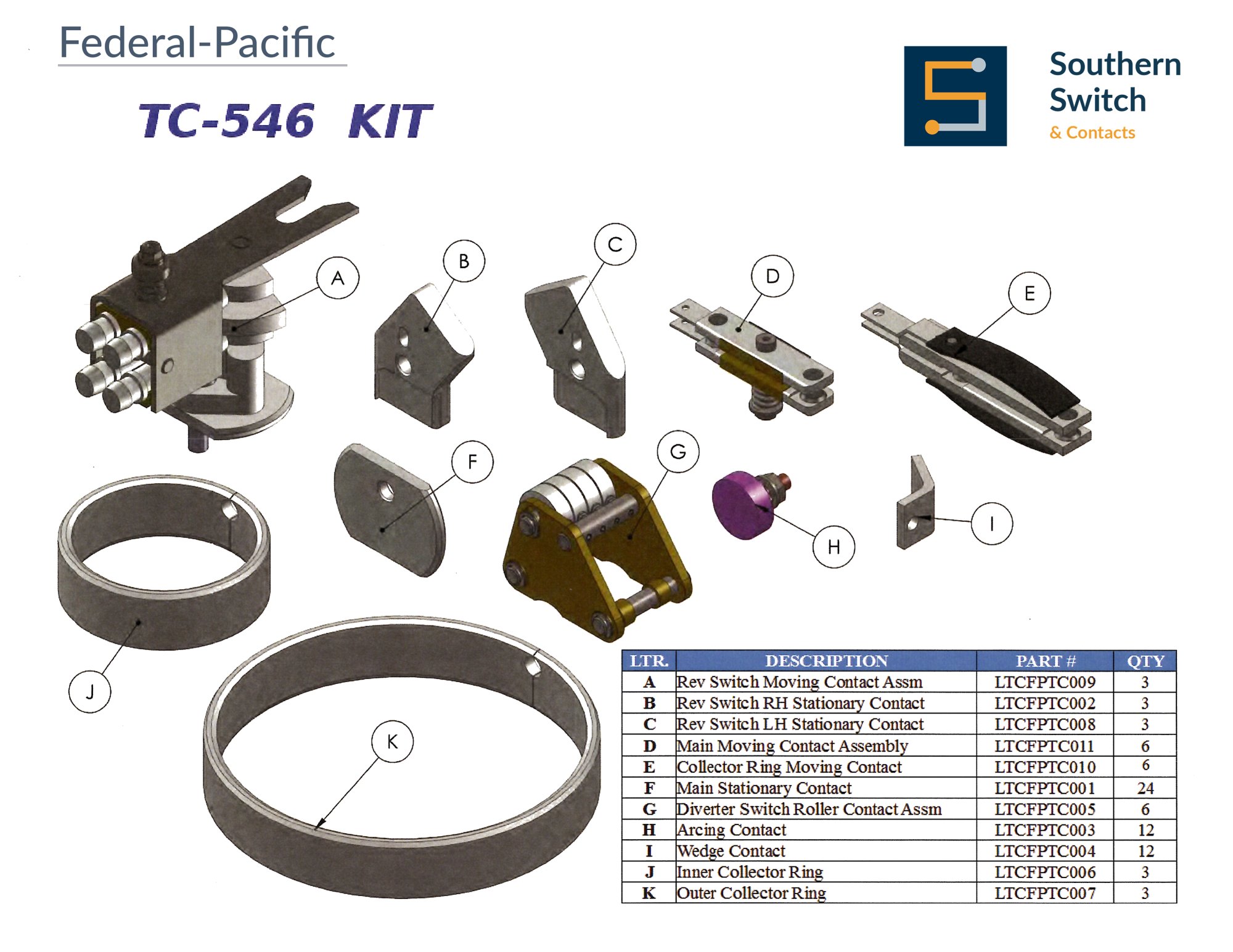

Each part below corresponds to a labeled component on the kit drawing. Click View to open the part’s standalone page, or + Quote to add it to your quote without leaving this page.
| Ref | Part | Qty | Action |
|---|---|---|---|
| A | Reversing Switch Moving Contact Assembly LTCFPTC009 | 3 | |
| B | Reversing Switch RH Stationary Contact LTCFPTC002 | 3 | |
| C | Reversing Switch LH Stationary Contact LTCFPTC008 | 3 | |
| D | Main Moving Contact Assembly LTCFPTC011 | 6 | |
| E | Collector Ring Moving Contact LTCFPTC010 | 6 | |
| F | Main Stationary Contact LTCFPTC001 | 24 | |
| G | Diverter Switch Roller Contact Assembly LTCFPTC005 | 6 | |
| H | Arcing Contact LTCFPTC003 | 12 | |
| I | Wedge Contact LTCFPTC004 | 12 | |
| J | Inner Collector Ring LTCFPTC006 | 3 | |
| K | Outer Collector Ring LTCFPTC007 | 3 |
