Federal-Pacific TC-525 Kit
A precision replacement kit for Federal-Pacific TC-525 load tap changers (LTCs), machined to OEM dimensional specifications. Material certification available on request.
- OEMFederal-Pacific
- Model / SeriesTC-525
- Part typeKit
- EquipmentLoad tap changers (LTCs)
- DocumentationMaterial certification on request
- AvailabilityBuilt to order / short lead times
- Internal ref.LTC-FP-TC525-KIT
Overview
contact kit for the Federal-Pacific TC-525 LTC, moving, stationary, arcing, diverter switch, wedge, bearing, and collector ring contacts.
About the Federal Pacific TC 525 Load Tap Changer
The Federal Pacific TC 525 is a load tap changer produced by Federal Pacific Electric and found in Federal Pacific transformer nameplate units across utility fleets. Its arcing contact and reversing stationary contact are the primary replacement items at overhaul. Southern Switch machines TC 525 arcing contacts and reversing stationary contacts to OEM dimensional specifications.
Why replace worn LTC contacts
Worn or burned tap-changer contacts raise resistance, run hot, and can lead to tap-changer failure. Precision replacements restore reliable switching and extend the service life of the LTC.
Stock, lead time & reverse engineering
Common items are produced on short lead times; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.

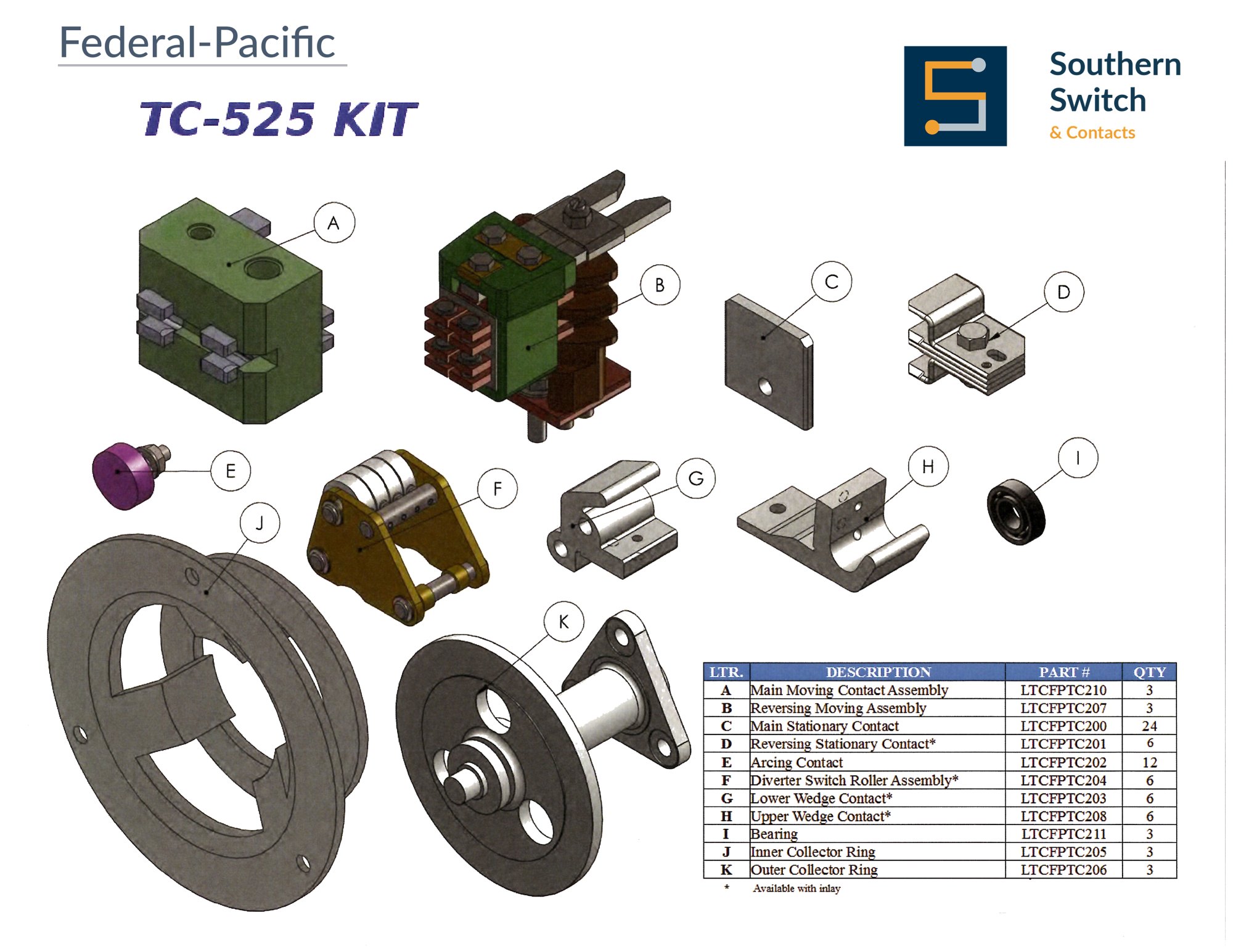

Each part below corresponds to a labeled component on the kit drawing. Click View to open the part’s standalone page, or + Quote to add it to your quote without leaving this page.
| Ref | Part | Qty | Action |
|---|---|---|---|
| A | Main Moving Contact Assembly LTCFPTC210 | 3 | |
| B | Reversing Moving Assembly LTCFPTC207 | 3 | |
| C | Main Stationary Contact LTCFPTC200 | 24 | |
| D | Reversing Stationary Contact LTCFPTC201 | 6 | |
| E | Arcing Contact LTCFPTC202 | 12 | |
| F | Diverter Switch Roller Assembly LTCFPTC204 | 6 | |
| G | Lower Wedge Contact LTCFPTC203 | 6 | |
| H | Upper Wedge Contact LTCFPTC208 | 6 | |
| I | Bearing LTCFPTC211 | 3 | |
| J | Inner Collector Ring LTCFPTC205 | 3 | |
| K | Outer Collector Ring LTCFPTC206 | 3 |
Send the model number, asset tag, or just a description, we’ll reply with pricing and lead time within one business day.
