Westinghouse UVT 2000 Amp Kit
A precision replacement kit for Westinghouse UVT 2000 load tap changers (LTCs), machined to OEM dimensional specifications.
- OEMWestinghouse
- Model / SeriesUVT 2000
- Part typeKit
- EquipmentLoad tap changers (LTCs)
- AvailabilityBuilt to order / lead time confirmed at quote
- Internal ref.LTC-WH-UVT2000-KIT
Overview
Contact kit for the Westinghouse UVT 2000-amp LTC, transfer switch P1/P2/P3 stationary, reversing finger, selector moving and stationary, and reversing stationary contacts.
About the Westinghouse UVT 2000
The Westinghouse UVT 2000-amp is a higher-capacity load tap changer used in large utility power transformers where load current exceeds the rating of the UTT and URT designs. Its transfer switch uses a P1, P2, and P3 stationary contact arrangement to carry and transfer current at each tap position. The transfer switch moving contact and P-series stationary contacts are the primary wear components and require inspection at the manufacturer's recommended overhaul interval.
Why replace worn LTC contacts
Worn or burned tap-changer contacts raise resistance, run hot, and can lead to tap-changer failure. Precision replacements restore reliable switching and extend the service life of the LTC.
Stock, lead time & reverse engineering
Lead time is confirmed at quote; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.

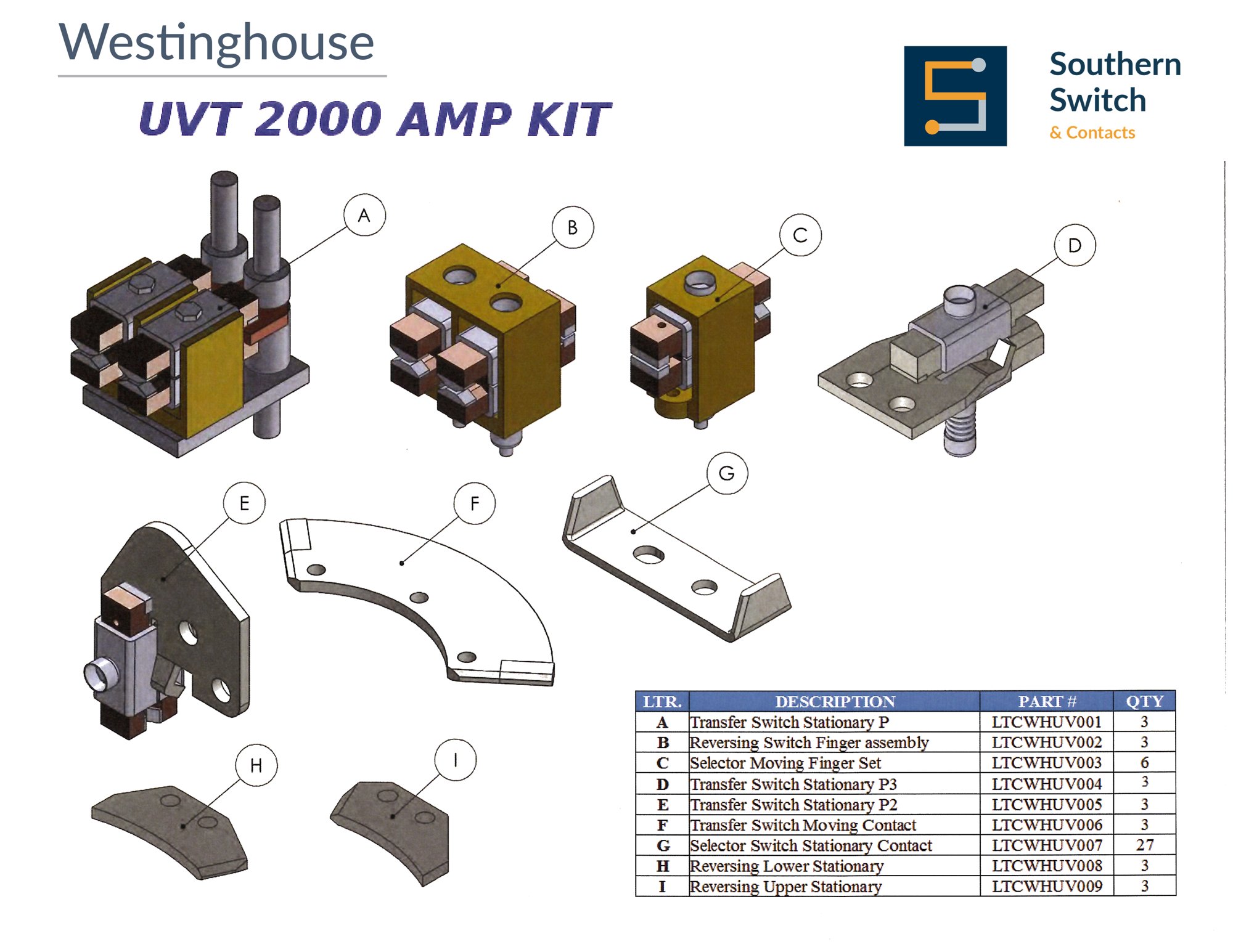

Each part below corresponds to a labeled component on the kit drawing. Click View to open the part’s standalone page, or + Quote to add it to your quote without leaving this page.
What’s in the kit
Every part below ships in the kit, listed with its OEM number and the quantity per kit. Need only certain parts or quantities? Tell us and we will tailor the quote.
| Ref | Part | Qty | Action |
|---|---|---|---|
| A | Transfer Switch Stationary P1 LTCWHUV001 | 3 | |
| B | Reversing Switch Finger Assembly LTCWHUV002 | 3 | |
| C | Selector Moving Finger Set LTCWHUV003 | 6 | |
| D | Transfer Switch Stationary P3 LTCWHUV004 | 3 | |
| E | Transfer Switch Stationary P2 LTCWHUV005 | 3 | |
| F | Transfer Switch Moving Contact LTCWHUV006 | 3 | |
| G | Selector Switch Stationary Contact LTCWHUV007 | 27 | |
| H | Reversing Lower Stationary LTCWHUV008 | 3 | |
| I | Reversing Upper Stationary LTCWHUV009 | 3 |
Worn but not scrap? Send us your used contacts. We recondition them to OEM dimension, or machine a new set from your sample, and return them tested and documented. Often cheaper and faster than buying new.
Send the model number, asset tag, or just a description, we’ll reply with pricing and lead time within one business day.
Net 30 with an accepted PO, no credit application required. How we do business →
