General Electric LRT200 Kit
A precision replacement kit for General Electric LRT200 load tap changers (LTCs), machined to OEM dimensional specifications.
- OEMGeneral Electric
- Model / SeriesLRT200
- Part typeKit
- EquipmentLoad tap changers (LTCs)
- AvailabilityBuilt to order / lead time confirmed at quote
- Internal ref.LTC-GE-LRT200-KIT
Overview
contact kit for the General Electric LRT200 LTC, reversing, bypass, and selector switch contacts plus reversing lift arm.
About the GE LRT200 Load Tap Changer
The General Electric LRT200 is a higher-capacity reactor-type load tap changer used in GE power transformers where load current exceeds the rating of smaller LRT-series designs. Its transfer switch moving contact assembly handles current transfer at each tap change. Southern Switch machines LRT200 moving contact assemblies to OEM dimensional specifications.
Why replace worn LTC contacts
Worn or burned tap-changer contacts raise resistance, run hot, and can lead to tap-changer failure. Precision replacements restore reliable switching and extend the service life of the LTC.
Stock, lead time & reverse engineering
Lead time is confirmed at quote; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.

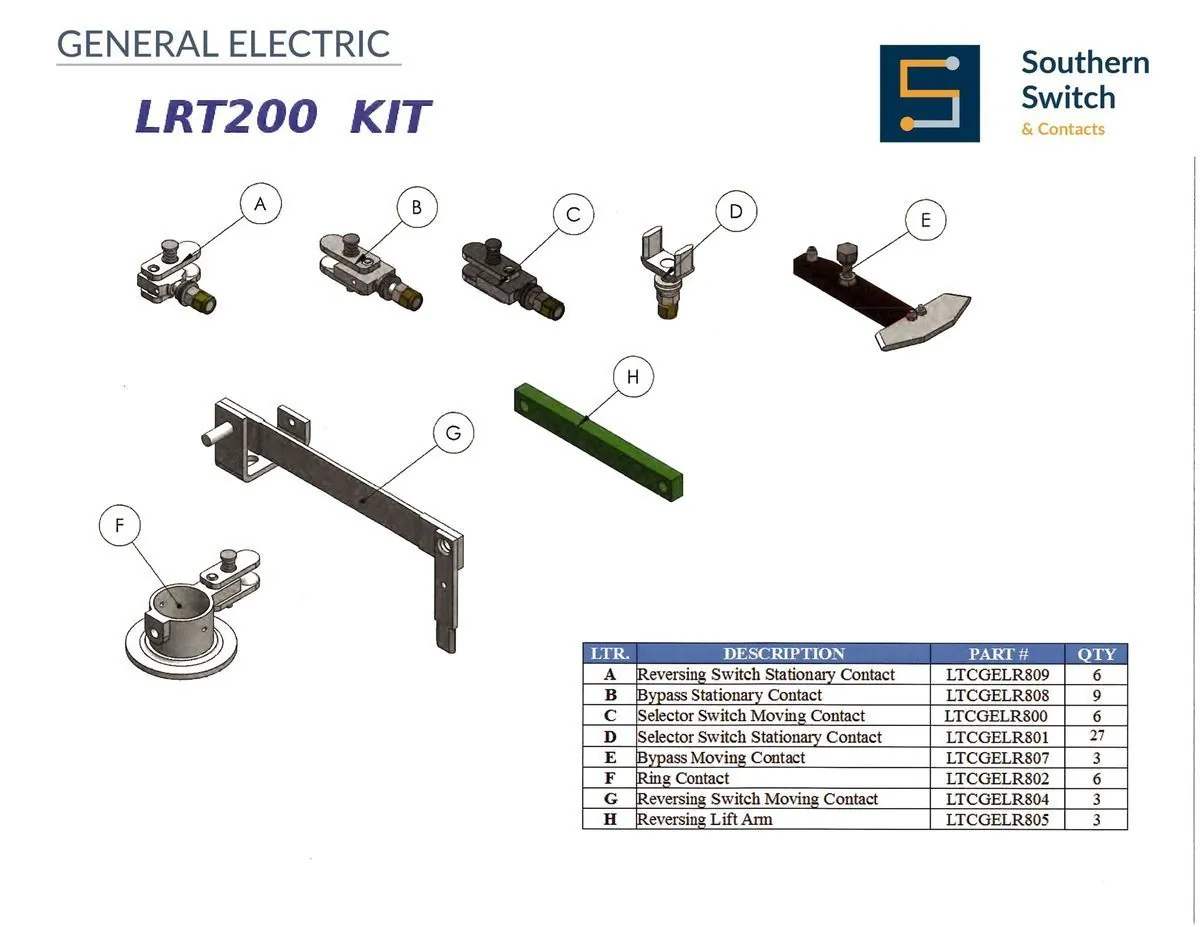

Each part below corresponds to a labeled component on the kit drawing. Click View to open the part’s standalone page, or + Quote to add it to your quote without leaving this page.
What’s in the kit
Every part below ships in the kit, listed with its OEM number and the quantity per kit. Need only certain parts or quantities? Tell us and we will tailor the quote.
| Ref | Part | Qty | Action |
|---|---|---|---|
| A | Reversing Switch Stationary Contact (OEM 149B9116P22) LTCGELR809 | 6 | |
| B | Bypass Stationary Contact (OEM 194A9435G1) LTCGELR808 | 9 | |
| C | Selector Switch Moving Contact (OEM 194A9435G24) LTCGELR800 | 6 | |
| D | Selector Switch Stationary Contact (OEM 263A3723P27) LTCGELR801 | 27 | |
| E | Bypass Moving Contact (OEM 346A4106G1) LTCGELR807 | 3 | |
| F | Ring Contact LTCGELR802 | 6 | |
| G | Reversing Switch Moving Contact LTCGELR804 | 3 | |
| H | Reversing Lift Arm LTCGELR805 | 3 |
Worn but not scrap? Send us your used contacts. We recondition them to OEM dimension, or machine a new set from your sample, and return them tested and documented. Often cheaper and faster than buying new.
Send the model number, asset tag, or just a description, we’ll reply with pricing and lead time within one business day.
Net 30 with an accepted PO, no credit application required. How we do business →
