Allis-Chalmers TLH-20 Kit
A precision replacement kit for Allis-Chalmers TLH-20 load tap changers (LTCs), machined to OEM dimensional specifications.
- OEMAllis-Chalmers
- Model / SeriesTLH-20
- Part typeKit
- EquipmentLoad tap changers (LTCs)
- AvailabilityBuilt to order / lead time confirmed at quote
- Internal ref.LTC-AC-TLH20-KIT
Overview
contact kit for the Allis-Chalmers TLH-20 LTC, main and reversing contacts, collector ring and hub assemblies, locking tabs.
About the Allis-Chalmers TLH-20
The Allis-Chalmers TLH-20 is a reactor-type load tap changer in the Allis-Chalmers TL series that uses an isolated reversing switch design. The main moving and stationary contacts still require periodic inspection and replacement at the manufacturer's recommended interval. The TLH-20 is found in utility distribution and transmission transformers and is fully supported by Southern Switch with new contacts, complete kits, and hardware including the collector hub, collector ring, and reversing switch assembly.
Why replace worn LTC contacts
Worn or burned tap-changer contacts raise resistance, run hot, and can lead to tap-changer failure. Precision replacements restore reliable switching and extend the service life of the LTC.
Stock, lead time & reverse engineering
Lead time is confirmed at quote; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.

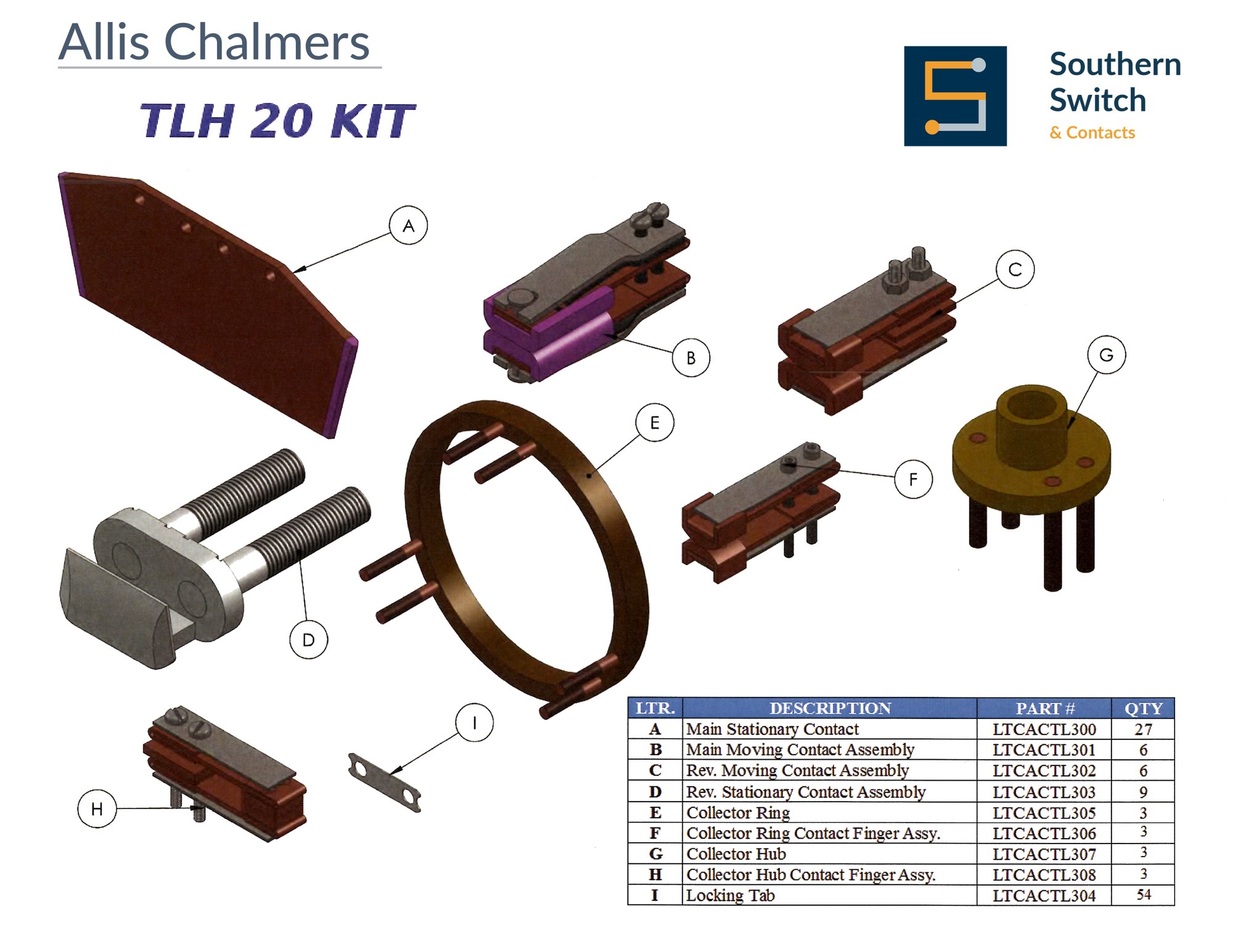

Each part below corresponds to a labeled component on the kit drawing. Click View to open the part’s standalone page, or + Quote to add it to your quote without leaving this page.
What’s in the kit
Every part below ships in the kit, listed with its OEM number and the quantity per kit. Need only certain parts or quantities? Tell us and we will tailor the quote.
| Ref | Part | Qty | Action |
|---|---|---|---|
| A | Main Stationary Contact (OEM 7061) LTCACTL300 | - | |
| B | Main Moving Contact Assembly (OEM 7059 / 7060) LTCACTL301 | - | |
| C | Reversing Moving Contact Assembly (OEM 7074) LTCACTL302 | - | |
| D | Reversing Stationary Contact (OEM 7066 / 7069 / 7070) LTCACTL303 | - | |
| E | Locking Tab LTCACTL304 | - | |
| F | Collector Ring (OEM 7080) LTCACTL305 | - | |
| G | Collector Ring Contact Finger Assembly (OEM 7077) LTCACTL306 | - | |
| H | Collector Hub (OEM 7081) LTCACTL307 | - | |
| I | Collector Hub Contact Finger Assembly (OEM 7079) LTCACTL308 | - |
Worn but not scrap? Send us your used contacts. We recondition them to OEM dimension, or machine a new set from your sample, and return them tested and documented. Often cheaper and faster than buying new.
Send the model number, asset tag, or just a description, we’ll reply with pricing and lead time within one business day.
