ITE 14.4KS 12D Kit
A precision replacement kit for ITE 14.4KS 12D oil circuit breakers (OCBs), machined to OEM dimensional specifications.
- OEMITE
- Model / Series14.4KS 12D
- Part typeKit
- EquipmentOil circuit breakers (OCBs)
- AvailabilityBuilt to order / lead time confirmed at quote
- Internal ref.BR-IT-144KS-12D-KIT
Overview
Contact kit for the ITE 14.4KS 12D oil circuit breaker, arcing and main stationary contacts, moving contact rod, baffle stack, spring.
About the ITE 14-4KS Oil Circuit Breaker
The ITE 14-4KS is an oil circuit breaker used in distribution substations for fault interruption, available in 12B, 12C, and 12D configurations with different interrupting ratings and contact arrangements. The arcing stationary contact and the complete interrupter kit components are the scheduled replacement items at overhaul. Southern Switch machines arcing stationary contacts and kits for the 12B, 12C, and 12D configurations.
Why replace worn OCB contacts
Pitted or eroded oil-circuit-breaker contacts increase resistance and weaken interruption. Precision replacements restore dependable making and breaking under load.
Stock, lead time & reverse engineering
Lead time is confirmed at quote; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.

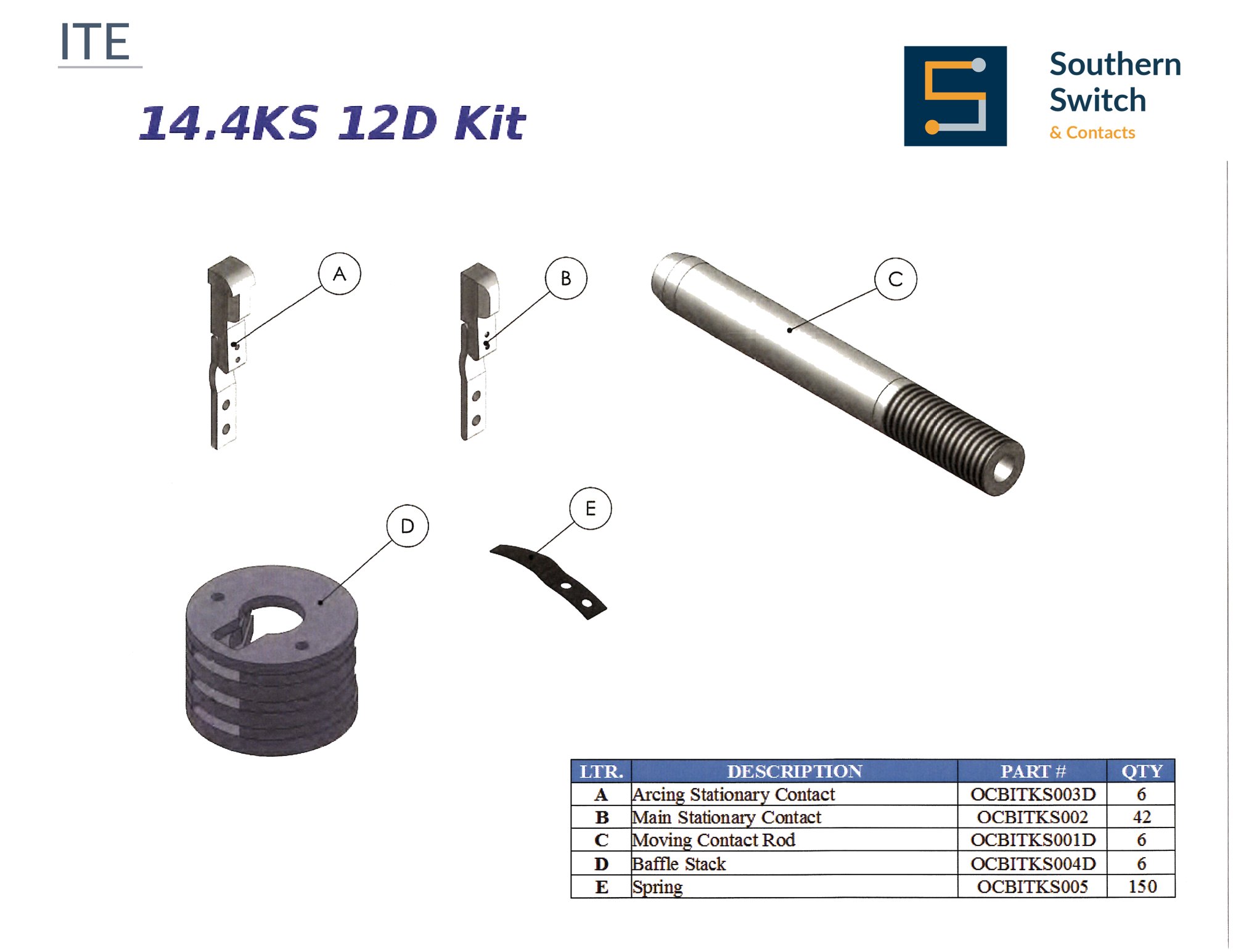

Each part below corresponds to a labeled component on the kit drawing. Click View to open the part’s standalone page, or + Quote to add it to your quote without leaving this page.
What’s in the kit
Every part below ships in the kit, listed with its OEM number and the quantity per kit. Need only certain parts or quantities? Tell us and we will tailor the quote.
| Ref | Part | Qty | Action |
|---|---|---|---|
| A | Arcing Stationary Contact (12D) OCBITKS003D | 6 | |
| B | Main Stationary Contact OCBITKS002 | 42 | |
| C | Moving Contact Rod (12D) OCBITKS001D | 6 | |
| D | Baffle Stack (12D) OCBITKS004D | 6 | |
| E | Spring OCBITKS005 | 150 |
Worn but not scrap? Send us your used contacts. We recondition them to OEM dimension, or machine a new set from your sample, and return them tested and documented. Often cheaper and faster than buying new.
Send the model number, asset tag, or just a description, we’ll reply with pricing and lead time within one business day.
Net 30 with an accepted PO, no credit application required. How we do business →
