General Electric FKD Kit
A precision replacement kit for General Electric FKD oil circuit breakers (OCBs), machined to OEM dimensional specifications.
- OEMGeneral Electric
- Model / SeriesFKD
- Part typeKit
- EquipmentOil circuit breakers (OCBs)
- AvailabilityBuilt to order / lead time confirmed at quote
- Internal ref.BR-GE-FKD-KIT
Overview
Contact kit for the GE FKD oil circuit breaker, yoke assembly with fingers, baffle stack, moving contact rod, arcing contact plate.
About the GE FKD Oil Circuit Breaker
The General Electric FKD is a heavier-duty oil circuit breaker variant with a longer contact rod, revised baffle stack assembly, bushing adapter, and yoke assembly with contact fingers. Like the FK, it interrupts fault current in oil using a finger-cluster design. The contact rod, baffle stack, arcing block, and fingers are the scheduled replacement items at overhaul, and Southern Switch machines FKD components to OEM dimensional specifications.
Why replace worn OCB contacts
Pitted or eroded oil-circuit-breaker contacts increase resistance and weaken interruption. Precision replacements restore dependable making and breaking under load.
Stock, lead time & reverse engineering
Lead time is confirmed at quote; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.

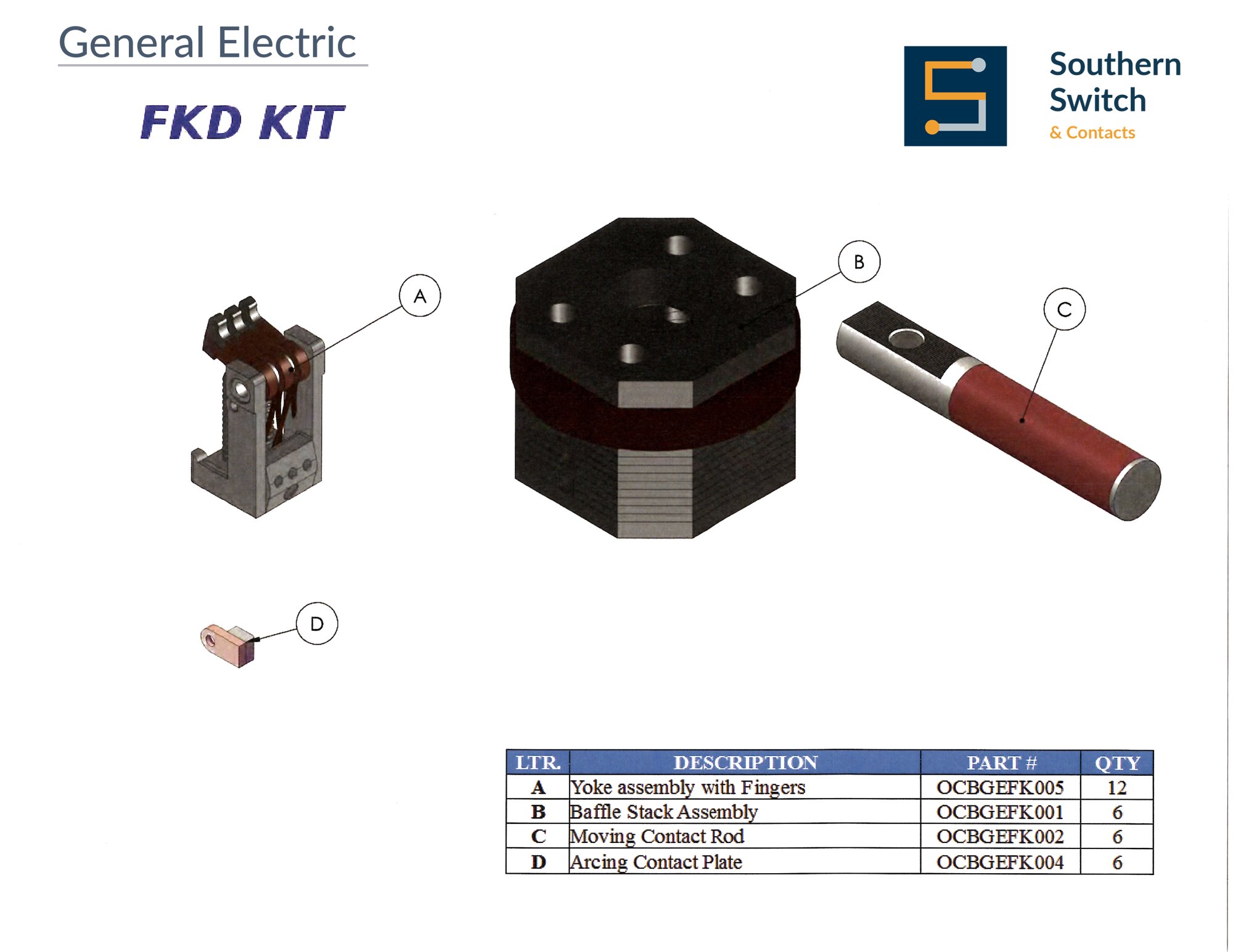

Each part below corresponds to a labeled component on the kit drawing. Click View to open the part’s standalone page, or + Quote to add it to your quote without leaving this page.
What’s in the kit
Every part below ships in the kit, listed with its OEM number and the quantity per kit. Need only certain parts or quantities? Tell us and we will tailor the quote.
| Ref | Part | Qty | Action |
|---|---|---|---|
| A | Yoke Assembly with Fingers (OEM 296B0387 G001) OCBGEFK005 | 12 | |
| B | Baffle Stack Assembly (OEM by kV class, see part page) OCBGEFK001 | 6 | |
| C | Moving Contact Rod (OEM by kV class, see part page) OCBGEFK002 | 6 | |
| D | Arcing Contact Plate (OEM 428A926 G001) OCBGEFK004 | 6 |
Worn but not scrap? Send us your used contacts. We recondition them to OEM dimension, or machine a new set from your sample, and return them tested and documented. Often cheaper and faster than buying new.
