General Electric FKD Moving Contact Rod
A precision replacement moving contact for General Electric FKD oil circuit breakers (OCBs), machined to OEM dimensional specifications.
- OEMGeneral Electric
- Model / SeriesFKD
- OEM part no. by class14.4 kV: 0809130326 G-1 · 15.5 kV: 0103A3850 G001 · 25.8 kV: 0103A3850 G002
- Part typeMoving contact
- EquipmentOil circuit breakers (OCBs)
- AvailabilityBuilt to order / lead time confirmed at quote
- Internal ref.OCBGEFK002
Overview
Moving Contact Rod for the General Electric FKD oil circuit breaker. 6 per kit. Machined to OEM spec.
About the GE FKD Oil Circuit Breaker

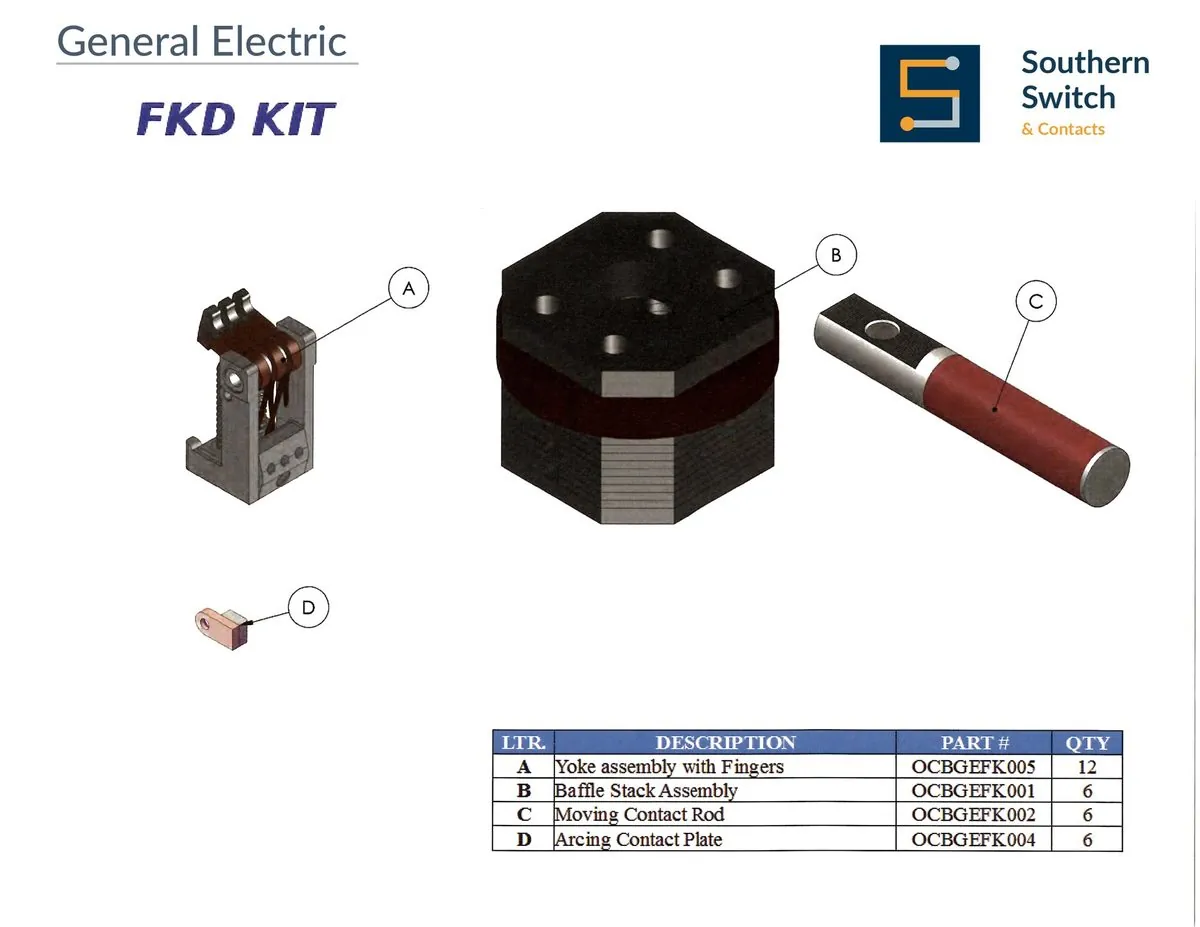

The General Electric FKD is a heavier-duty oil circuit breaker variant with a longer contact rod, revised baffle stack assembly, bushing adapter, and yoke assembly with contact fingers. Like the FK, it interrupts fault current in oil using a finger-cluster design. The contact rod, baffle stack, arcing block, and fingers are the scheduled replacement items at overhaul, and Southern Switch machines FKD components to OEM dimensional specifications.
Why replace worn OCB contacts
Pitted or eroded oil-circuit-breaker contacts increase resistance and weaken interruption. Precision replacements restore dependable making and breaking under load.
Stock, lead time & reverse engineering
Lead time is confirmed at quote; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.
Worn but not scrap? Send us your used contacts. We recondition them to OEM dimension, or machine a new set from your sample, and return them tested and documented. Often cheaper and faster than buying new.
Send the model number, asset tag, or just a description, we’ll reply with pricing and lead time within one business day.
Net 30 with an accepted PO, no credit application required. How we do business →
