Moloney MA1/MB1 Kit
A precision replacement kit for Moloney MA1/MB1 load tap changers (LTCs), machined to OEM dimensional specifications. Material certification available on request.
- OEMMoloney
- Model / SeriesMA1/MB1
- Part typeKit
- EquipmentLoad tap changers (LTCs)
- DocumentationMaterial certification on request
- AvailabilityBuilt to order / short lead times
- Internal ref.LTC-MO-MA1MB1-KIT
Overview
contact kit for the Moloney MA1/MB1 LTC, transfer switch, selector, reversing switch, and collector ring assemblies.
About the Moloney MA1/MB1 Load Tap Changer
The Moloney MA1 and MB1 are updated variants of the MA/MB load tap changer with a revised collector ring and contact geometry. Like the MA/MB, they use a transfer switch, selector switch, and reversing switch arrangement. The transfer switch stationary contacts, collector ring assembly, and selector switch moving contact are the scheduled maintenance items. Southern Switch machines replacement contacts and complete kits for the MA1 and MB1.
Why replace worn LTC contacts
Worn or burned tap-changer contacts raise resistance, run hot, and can lead to tap-changer failure. Precision replacements restore reliable switching and extend the service life of the LTC.
Stock, lead time & reverse engineering
Common items are produced on short lead times; discontinued or hard-to-find parts are reverse-engineered from a sample, a drawing, or a model number. Based in Palm Harbor, FL, Southern Switch & Contacts manufactures and ships replacement parts to utilities nationwide, and has served the industry since 1982.

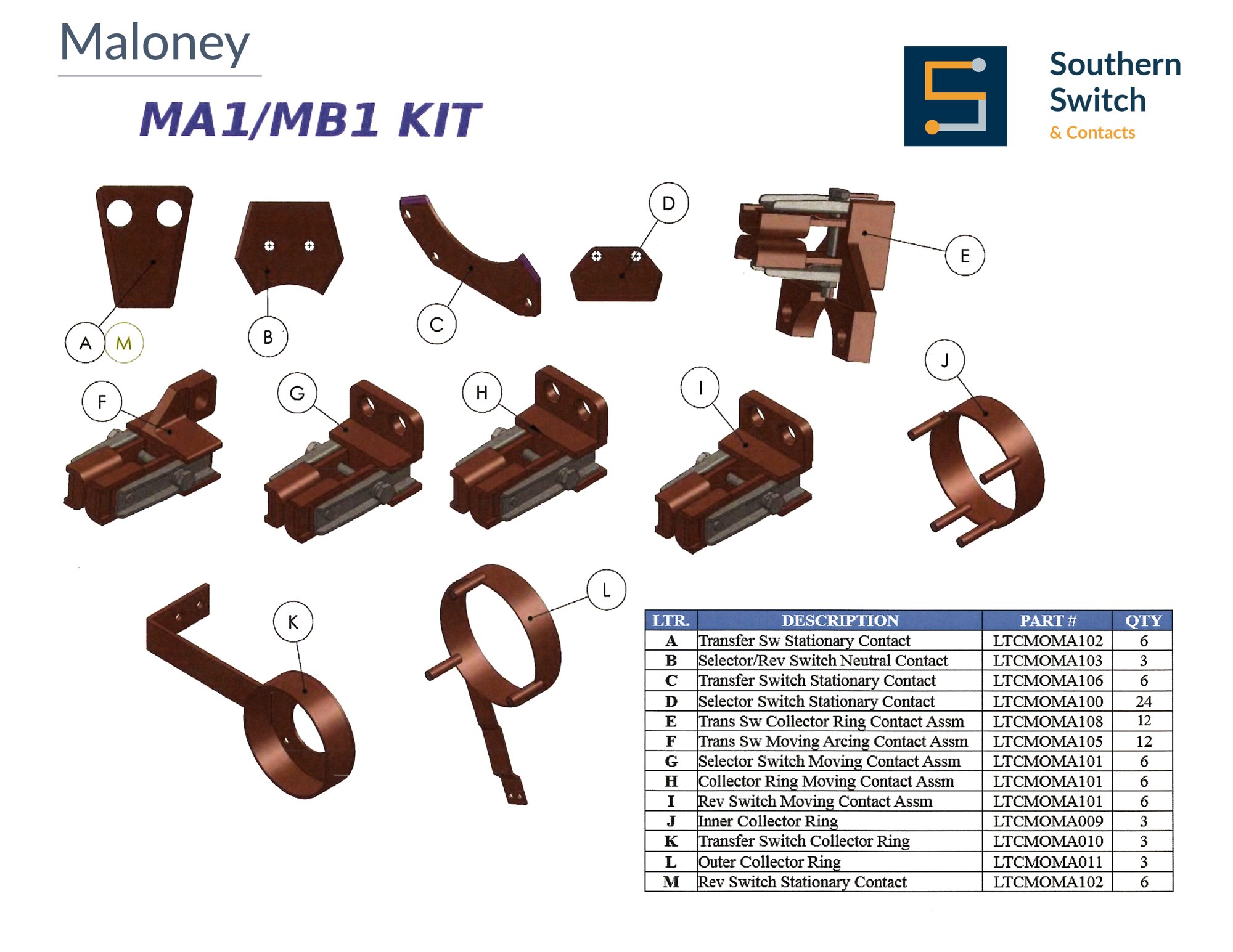

Each part below corresponds to a labeled component on the kit drawing. Click View to open the part’s standalone page, or + Quote to add it to your quote without leaving this page.
| Ref | Part | Qty | Action |
|---|---|---|---|
| A | Transfer Switch Stationary Contact LTCMOMA102 | 6 | |
| B | Selector/Reversing Switch Neutral Contact LTCMOMA103 | 3 | |
| C | Transfer Switch Stationary Contact LTCMOMA106 | 6 | |
| D | Selector Switch Stationary Contact LTCMOMA100 | 24 | |
| E | Transfer Switch Collector Ring Contact Assembly LTCMOMA108 | 12 | |
| F | Transfer Switch Moving Arcing Contact Assembly LTCMOMA105 | 12 | |
| G | Selector Switch Moving Contact Assembly LTCMOMA101 | 6 | |
| J | Inner Collector Ring LTCMOMA009 | 3 | |
| K | Transfer Switch Collector Ring LTCMOMA010 | 3 | |
| L | Outer Collector Ring LTCMOMA011 | 3 |
Send the model number, asset tag, or just a description, we’ll reply with pricing and lead time within one business day.
Net 30 with an accepted PO, no credit application required. How we do business →
