4160V Breaker Won’t Close

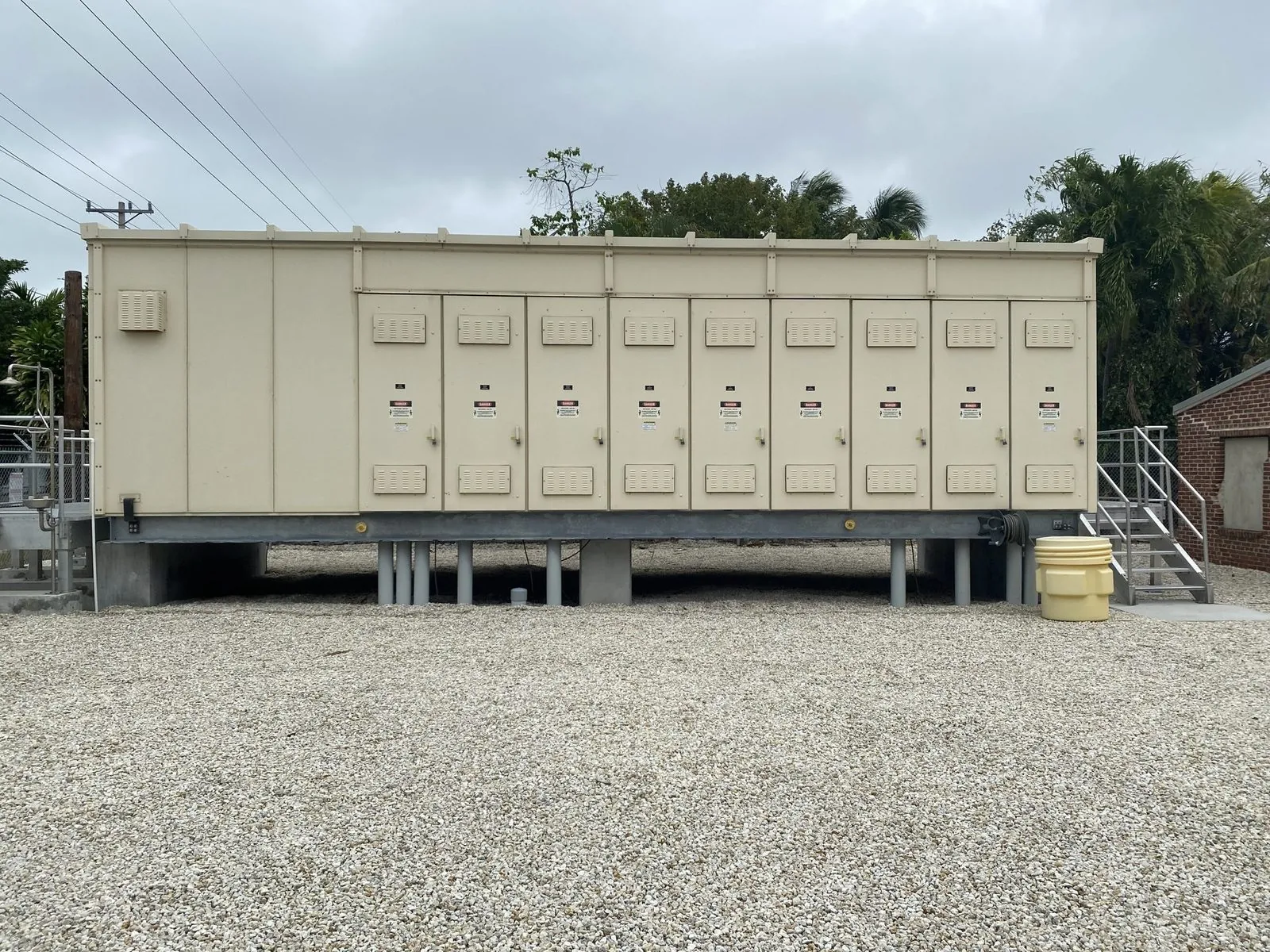

FCC Environmental, Pinellas County
FCC Environmental called with a 4160V breaker that would not close. Operations were down. Southern Switch responded same day, opened the mechanism, and found the cause: a broken split pin on the operating linkage had disconnected the mechanism from the contact assembly. The mechanism was cycling. The contacts weren’t moving. Repaired on-site, back online same day.
It’s not always a catastrophic failure that takes equipment offline. Sometimes it’s a two-dollar fastener.
Breaker won’t close.
Operations down.
A 4160V medium-voltage circuit breaker that refuses to close takes everything on its downstream bus with it. For an industrial facility running processing equipment, that means operations stop. The breaker wasn’t tripped on a fault — the trip indicator was clear, the spring was charged, and operators could hear the mechanism cycle when they hit the close button. The contacts weren’t engaging.
FCC Environmental contacted Southern Switch. We were on-site same day.
The mechanism cycled.
The contacts didn’t.
The symptom — mechanism operating, contacts not following — points to one place: the linkage between the two. In a medium-voltage circuit breaker, the stored-energy mechanism (spring or solenoid) drives the contact assembly through a mechanical linkage. The operating force is transmitted through that linkage to move the contacts from open to closed. If the linkage loses mechanical continuity at any point, the mechanism fires and nothing happens at the contacts.
Southern Switch isolated the breaker, racked it out, and opened the mechanism compartment. The linkage inspection found the cause: a split pin had broken, allowing the clevis pin at that joint to walk out of position. With the pin displaced, the linkage was disconnected. The mechanism had somewhere to go. The contacts didn’t.
A split pin (cotter pin) is a small fastener inserted through a hole in a clevis or shaft to retain a linkage pin in its bore. In a circuit breaker operating mechanism, linkage pins connect the operating rod, toggle arms, and contact drive rod into a kinematic chain. The split pin keeps each connecting pin from migrating axially out of its bore under vibration and the shock loads of repeated operation.
When a split pin breaks — from fatigue, corrosion, or a too-tight bore that overstressed the legs during installation — there is nothing left to retain the linkage pin. Vibration from the facility or from breaker operations walks the pin out. The joint opens. The mechanism is now mechanically isolated from the contacts it is supposed to drive.
New pin. Inspected.
Functional test. Done.
The displaced clevis pin was re-seated and secured with a new split pin of the correct diameter and material. The remaining linkage joints were inspected for the same condition — any split pin that showed fatigue cracking, corrosion, or a loose fit was replaced. The mechanism was cycled manually through open and close to verify full contact travel and correct latch engagement before any electrical test.
With the mechanism confirmed, the breaker was racked back in and function-tested: close, trip, close, trip — multiple cycles to confirm consistent operation before returning it to service. FCC Environmental had the breaker back online the same day Southern Switch arrived.
- →Re-seated displaced clevis pin, installed new split pin
- →Inspected all linkage joints for same condition, replaced any suspect pins
- →Manual cycle verification: full contact travel and latch engagement confirmed
- →Functional test: multiple close/trip cycles before return to service
The alternative to same-day on-site repair is racking the breaker out, shipping it to a service facility, waiting in queue, and reinstalling. For a facility that needs the breaker to run operations, that timeline is measured in days or weeks.
A broken split pin is repairable in the field by someone who knows where to look. The value is in the diagnosis. Once you know what broke, the fix takes minutes. Getting to the right answer fast is the job.
Split pins in operating mechanisms are not typically on routine inspection checklists, but they should be. During any planned outage with the breaker racked out and mechanism cover removed:
- →Check that all split pins are present and that both legs are spread adequately — a pin with both legs straight has not been properly installed or has been straightened by someone who reused it
- →Look for corrosion at the pin and bore — rust weakens the pin cross-section and can bind the bore, making it harder to inspect and creating a stress riser where the pin will eventually break
- →Try to move the clevis pins axially by hand — any detectable play means the retaining pin is no longer doing its job
- →Never reuse a split pin — once the legs have been spread and removed, the material is work-hardened and the pin should be discarded
